PECO MINI CAMS

COMPACT DIE MOUNTED CAMS

FOR WHEN YOU NEED EXTRA TONNAGE IN A LIMITED SPACES

COMPACT MINI-CAMS TO SUIT

SMALL TRANSFER DIE SETS

ALL MINI CAMS SUPPLIED WITH A LARGE FIXING PLATE

COMPACTDIE MOUNTED MINI CAMS

Single or multi-point piercing and forming Cam units

SPS SINGLE POINT PIERCING CAM

MODEL: SPS

DMK Mini Cams

MODEL: DMK

HSPS HEAVY DUTY PIERCING CAM

MODEL: HSPS

MODEL-SPS, DMK & HSPS

These Cams are replacements for U.S.A Danly Cam Drives, in Europe NewStark M/ML cams

  • Drop-Ins Same Shut Heights, Strokes and Fixing Holes

  • High Compression Die Springs Fitted,

  • Solid Graphite Lubrication,

  • Maintenance Free

  • Guided Top Plunger

  • Over-stroking limiter

  • Use Standard Punch Blanks

  • Strokes From 10-19,13-22,16-25,19-28, 32-50, 38-63

  • Positive return mechanism

  • Designed to accommodate single or multi-point tooling

​

                                                           Registered Designs

STRONGER, FASTER AND MORE COST-EFFICTIVE

MODEL: RBH : URATHANE STRIPPER

RUBBER PARTS STRIPPER

      URETHANE PARTS STRIPPER

​

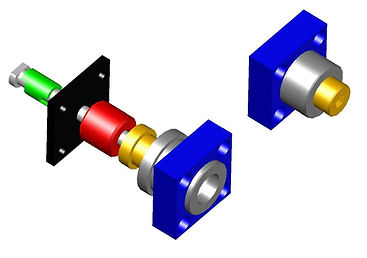

  • Designed to accommodate any plain or shaped standard punch blanks

  • Delivering innovation and technology

  • Precise Cam Lock Punch Location

  • Standard Urethane stripper to suit punch blanks

  • Easily fitted shaped punches

MODEL: SPH : SOILID TIP STRIPPER

SOLID POINT PARTS STRIPPER

      SOLID POINT PARTS STRIPPER

​

  • Precise alignment for any punch blanks

  • Delivering innovation and technology

  • Use die spring or urethane energizer

  • Harden and precision ground components

  • Easily fitted and removed punches

REGISTERED DESIGNS

DIRECT DROP IN FOR U.S.A BOX TYPE CAMS

CAMS FOR THE USA

​

WE HAVE A DIRECT REPLACEMENT FOR THESE U.S.A MODELS

​

101/101 MM

2L/2LHM

3L/3LHM

4L/4LHM

5L/5LHM

LCB-5020

LCB-6040

​

​

EXAMPLE: 2L/2LHM EQUIVALENT

  • Supplied with a Removable larger-than-normal soft mounting plate,

  • Easy access to replace Nitrogen Gas Spring.

  • All sliding components are hardened and tempered with graphite inserts.

  • An electronic return sensor is fitted if requested.

  • An oversized mounting face is available for irregular-shaped formers or Punch Retainers.

  • The fixing Plate is Supported by 2 Guide pins which maintain perfect alignment when side loading is applied.

  • Bronze Graphite or Steel Graphite wear plate and bushes



REGISTERED DESIGNS

MODELS: APA, HAPA, SAPS RANGE OF FULLY ADJUSTABLE FIXING PLATES WITH URATHINE OR SOLID POINT PARTS STRIPPER MADE TO SUIT YOUR APPLICATION.

DIE MOUNTED ANGLED CAM
REMOVEABLE FIXING PLATE

DESIGNED FOR SMALL TO MID-SIZE DIES
Example for a 10mm stroke @ 20 degree unit

MODEL: APA

Example - APA 0250-10-20

TYPICAL DIE-MOUNTED CAM UNIT

Suitable for polyurethane elastomer strippers

 Standard 5degrees INCREMENTS

Made to suit any angle to match your components

MODEL: HAPA-

Example - HAPA 0250-10-20

Heavy Duty Cam Units suitable for large fixing plates to accommodate punch retainers

MADE TO SUIT YOUR APPLICATIONS

FROM: 0 - 30 degrees or anything in-between

MODEL: SAPS

Example - SAPS 0250-10-20

REMOVABLE SINGLE POINT FIXING PLATE.

Making tool adjustments quick and simple

use standard-length punch blanks, ideal for Prestam punches

REGISTERED DESIGNS

STRIPPER MOUNTED AREIAL CAMS AND LOCATION CONE

MODEL: UMPA angles from 5 - 40 degrees

​

NEW AERIAL CAM

These cams are simple and easy to fit; no complicated machining is required on the stripper plate. plus maintenance-free slides, designed for deep drawing, piercing and forming operations.

Screenshot (52).png
COPYRIGHT

REGISTERED DESIGNS

50mm WIDE  GUIDE PIN AREIAL AND DIE MOUNTED CAM UNITS

50mm WIDE CAMS
50mm WIDE CAMS
DIE MOUNTED 50mm WIDE CAM

MODEL: ACU 50mm  & DMC 50mm CAMS

Simple and cost-effective aerial cam, in angles from 0-60 degrees, self-lubricating, maintenance free, and Gas spring return.

Designed to compete with traditional aerial cams, our cams are strong and dependable, using the accuracy and alignment provided by guide pins and bushes.

REGISTERED DESIGNS

HEAVY DUTY HYDRAULIC DIE MOUNTED CAMS

Hydraulic Piercing Cam

MODEL: NSK HYDRAULIC CAMS

  • Cam stroke available 2o, 30, and 40mm

  • These cams are self-monitoring meaning the hydraulic oil is automatically replenished to optimal volumes.

  • Main fixing plate supported by 4 guide pins

  • Powered by 2 nitrogen gas springs

  • Removable tool fixing plate


REGISTERED DESIGNS

PECO HYDRAULIC POWER CAMS

MODEL RDU- REMOTE DRIVEN CAM UNTS

Die Mounted Hydraulic Driven Cams

Alternative to Flex Cam

  • Drive multiple cam units from one driver

  • Large fixing plate supported by 4 guide pins

  • Bronze graphite bushing

  • Maintenance free self-lubricating

  • Units are supplied with distribution manifold

  • Cam unit stroke from 12-40mm as standard

  • Special units with stroke 50-100mm are available

  • High compression or Gas Spring return

REGISTERED DESIGNS

PECO LCXR CAMS

EU SPEC CAMS

MODEL LCXR

  • Direct Replacement for Azol NXR and cams of that type.

  • Self-lubricating

  • Strokes from: 20,30,40,50mm

  • Gas Spring Return

  • Positive Drive Return

  • Units supplied with a plain or pre-drilled fixing face

PECO ROLLER CAM

LTM CRX01-30 3D-DESKTOP-4JJ8NG8_edited.p

LTM ADJUSTABLE ROLLER CAM

  • Fully adjustable roller cam, with precise adjustment to suit the finishing stroke of your tool to improve productivity

  • Reduce Set-up Times

  • Gas Spring Return

  • Removable Fixing Plate

  • Positive Return Actuator​

REGISTERED DESIGNS

PECO DIE MOUNTED CAMS

Standard Die Mounted Cams

DMC & DMCS Die Mounted Cams

DMC Cams are Suitable for small dies

Powered by die or gas springs

All components are made from hardened steel.

Long-lasting wear surfaces

Specials for Shearing, Forming, Trimming, Deep Draw Forming



REGISTERED DESIGNS
